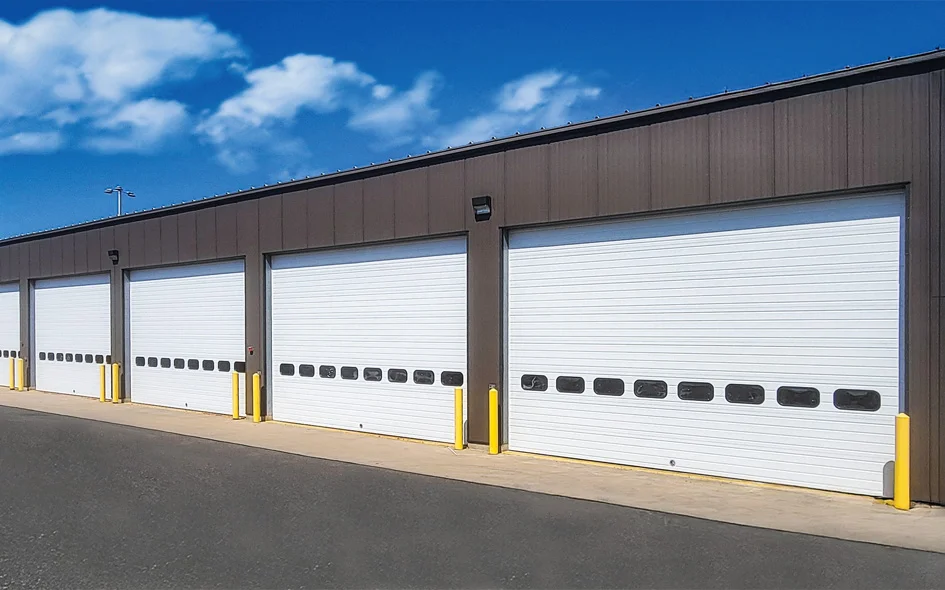

Thermacore® Model 592 sectional steel doors with windows, showcasing thermal efficiency and durable construction, in a commercial setting.

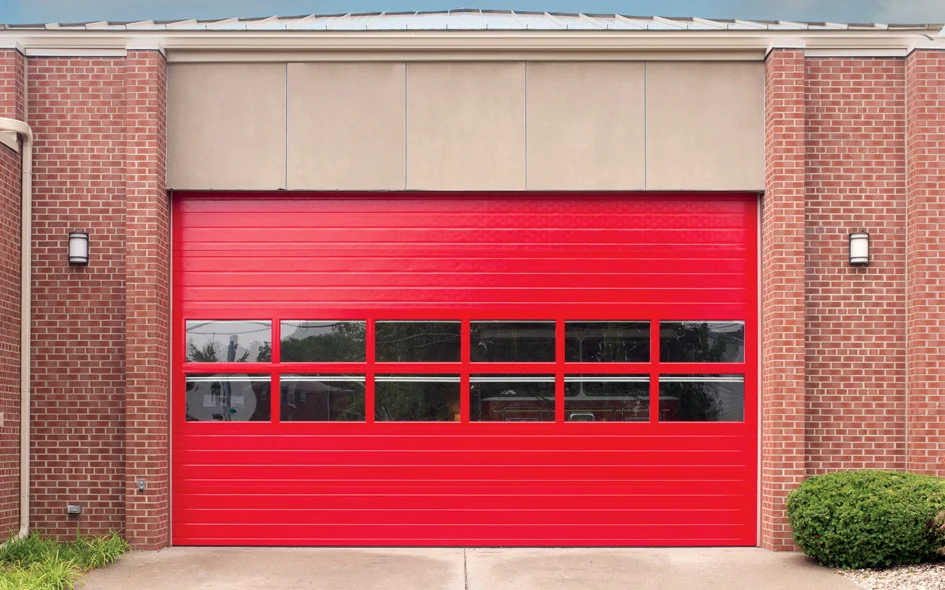

Thermacore® Model 592 red sectional steel door with window panels, showcasing superior thermal efficiency and modern design for commercial applications.

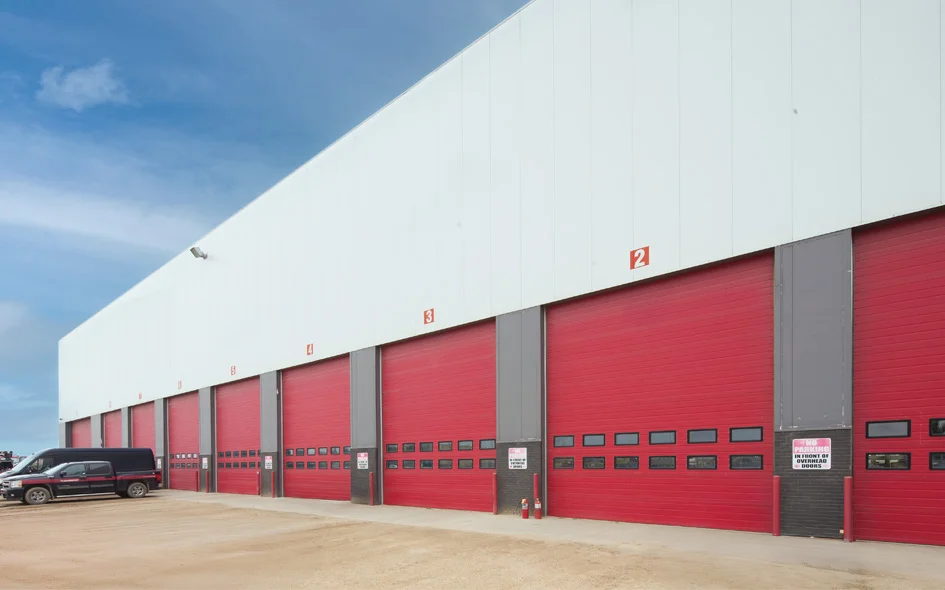

Red Thermacore® sectional steel doors on a commercial building, showcasing superior thermal efficiency and air infiltration features, with visible signage and a vehicle parked nearby.

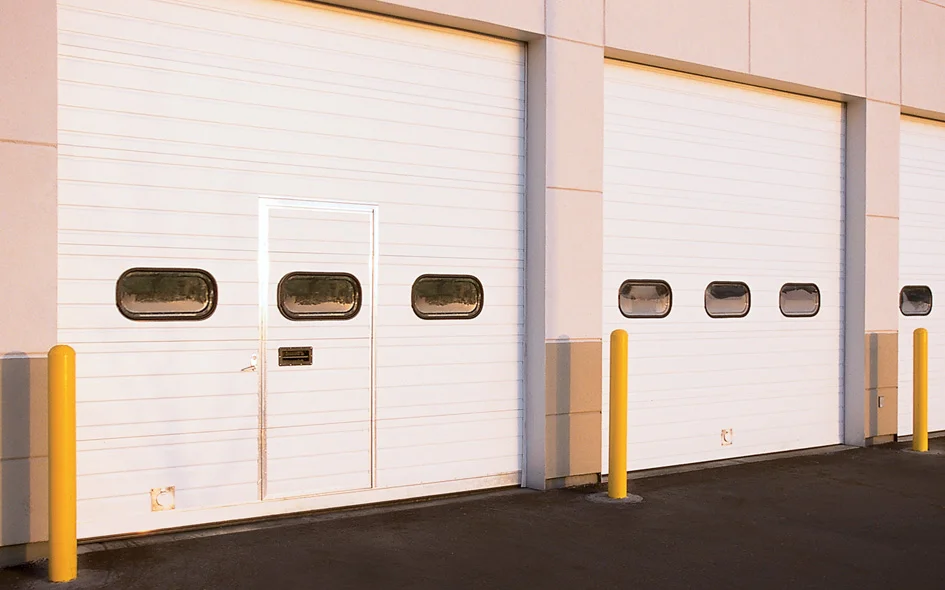

Thermacore® Model 592 sectional steel door with windows, designed for heavy-duty applications, showcasing superior thermal efficiency and air infiltration resistance.

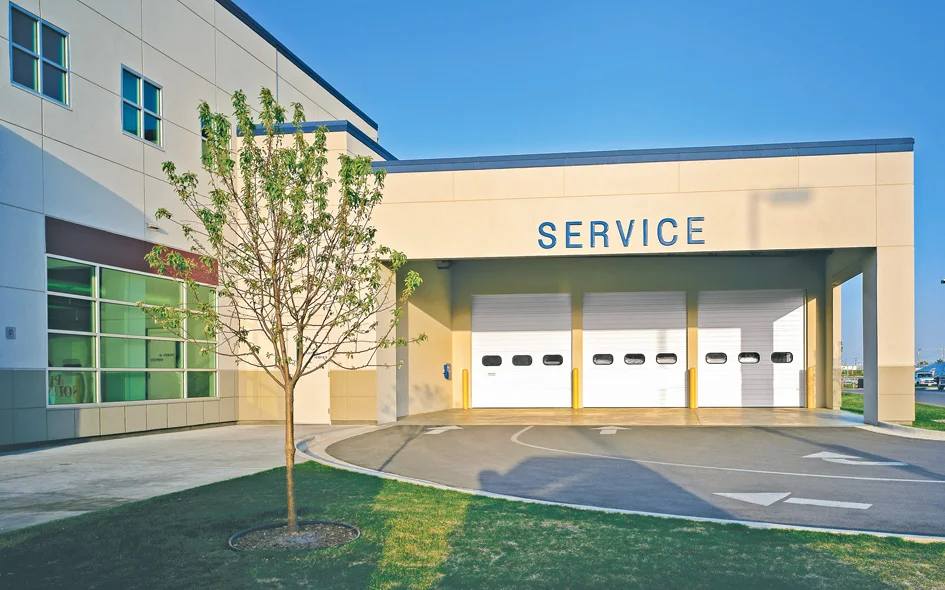

Service entrance with Thermacore® Sectional Steel Doors, showcasing durability and thermal efficiency, located in Fresno, CA.

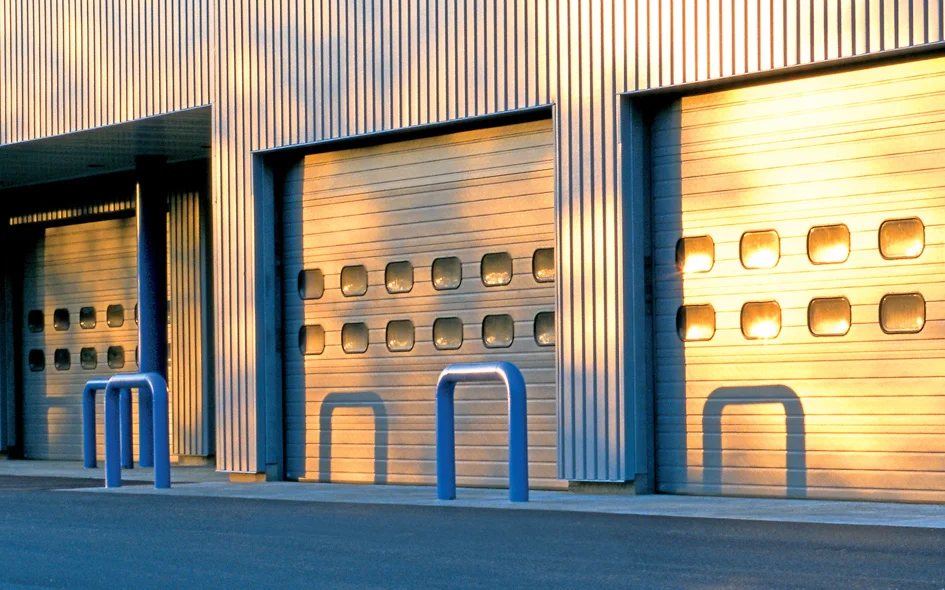

Thermacore® Model 592 sectional steel doors in a commercial setting, showcasing superior thermal efficiency and air infiltration resistance.

Thermacore® Sectional Steel Door - 592

Model 592

The Thermacore® Model 592 offers superior thermal efficiency for heavy-duty applications. It is an ideal choice for applications that demand the highest levels of thermal efficiency, air infiltration, and wind load resistance.

With a U-factor of .10 (R-value of 17.5) and one of the best overall air infiltration ratings in the industry, the Thermacore® Model 592 is one of the most thermally efficient door system in its class.

The Thermacore® product line features steel-polyurethane-steel panel construction which provides a thermal barrier that withstands extremely hot or cold climates and the most demanding environmental requirements.

The Model 592 has 2″ (51 mm) thick, extra heavy-duty sections that are available in standard sizes up to 40’2″ and 32’1″ (12,243 mm and 9,779 mm) to fit the broadest range of applications.

Overview
Documents

Construction

Product Specifications
Standard Max Width	40’2″ (12,243 mm)
Standard Max Height	32’1″ (9,779 mm)
Panel thickness	2″ (51 mm)
U-factor*	.10
R-value**	17.5 (3.09 W/m2)
Sound Transmission Class 20	Ideal for applications that require sound control
Air infiltration	at 25 mph (40 kmp/h) .13 cfm/ft² (2.37 m³/hr/m²)
Thermal break	PVC
Exterior Steel	.015″ (.38 mm) galv.
Exterior Surface	Ribbed, textured
Standard Springs	10,000 cycles
Wind Load	Designs available for usage in high-wind conditions

_{*U-factor values are independently tested and verified per ANSI/DASMA 105.}
_{**Overhead Door uses a calculated door section R-value for our insulated doors.}

Warranty

10 year limited delamination
1 year limited on door
3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
20 year limited on high performance fluoropolymer coating option

BIM

Thermacore-Sectional-Steel-Doors-Model-592-BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

Instructional Manuals

Thermacore® Models 591, 592, 596, 599 Installation Instructions (opens in a new window)

Warranties

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Features of the Thermacore® Sectional Steel Door

The Thermacore® Sectional Steel Door - 592 is designed with a variety of features that enhance its performance and durability. Its 2-inch thick sections provide superior insulation and strength, making it ideal for both residential and commercial applications. The door's construction includes a thermal break to minimize heat transfer, ensuring energy efficiency.

In addition to its robust construction, the door is equipped with a Sound Transmission Class rating of 20, which helps control noise levels in environments where sound reduction is essential. The exterior is crafted from .015″ galvanized steel, offering protection against the elements while maintaining aesthetic appeal. These features collectively make the Model 592 a top choice for demanding environments.

Applications of the Thermacore® Sectional Steel Door

The Thermacore® Sectional Steel Door - 592 is versatile and suitable for a wide range of applications. It is particularly effective in commercial settings where durability and thermal efficiency are critical, such as warehouses, distribution centers, and manufacturing facilities. Its design accommodates various operational needs, including high-frequency use.

Moreover, the door is also an excellent option for residential garages that require enhanced insulation and security. Its ability to withstand harsh weather conditions while providing energy savings makes it a practical choice for homeowners looking to improve their garage's functionality and comfort.

Installation and Maintenance Guidelines

Proper installation and maintenance are crucial for the longevity and performance of the Thermacore® Sectional Steel Door - 592. It is recommended that installation be carried out by trained professionals to ensure the door operates smoothly and safely. Following the manufacturer's installation instructions will also help avoid potential issues down the line.

Regular maintenance, including lubrication of moving parts and inspection of seals, will extend the life of the door. Users should refer to the provided instructional manuals for detailed maintenance procedures and troubleshooting tips, ensuring optimal performance throughout the door's lifespan.

Customer Support and Inquiries

The Overhead Door Company of Fresno is committed to providing excellent customer support for all inquiries related to the Thermacore® Sectional Steel Door - 592. Customers can reach out via phone or visit the company's location for personalized assistance. The knowledgeable staff are ready to answer questions about product specifications, installation, and warranty options.

Additionally, the company offers resources such as product literature and installation manuals online, making it easier for customers to find the information they need. Whether seeking a quote or needing support after purchase, Overhead Door Company ensures a seamless experience for all customers.
