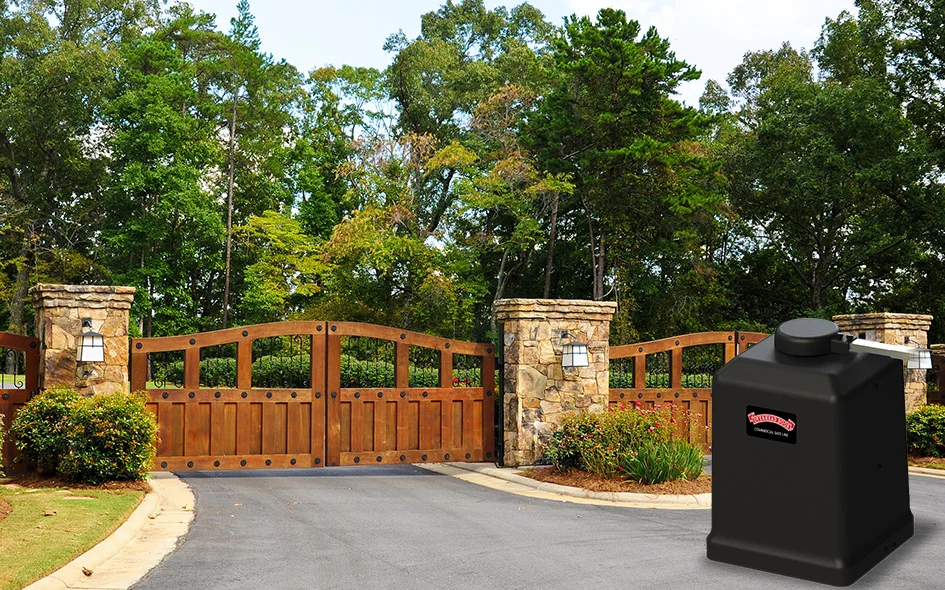

Commercial Vehicular Swing Gate Operator

RCSW36V

The model RCSW36V swing gate operator is designed for commercial gates that require continuous duty cycle capability. Robust mechanical design and advanced control features set a new standard for productivity.

Overview
Documents

Standard Features

Dual line backlit LCD display
Adjustable speed
Advanced 315/390Mhz radio receiver stores up to 250 CodeDodger^® transmitters with unique IDs
OHD Anywhere^® ready (with optional Wi-Fi board)
Timer to close
Battery backup
Up to 150 cycles on fully charged batteries
On-board solar charge controller
Split cover allows for full access to operator without removing arm
Rack for pluggable loop detectors
Surge protection on field wiring inputs
Four monitored safety inputs
Two auxiliary relays, configurable from LCD
Built-in 7-day timer
Primary/secondary control for dual gates

Specifications

115VAC, field adjustable to 230VAC
100% Continuous Duty Cycle
Rated for gates up to 18ft wide and 1500lbs
-20° to +60°C (-40° to +60°C with optional heater)
(2) 7Ah batteries included
5 Year warranty
UL 325 Listed, Class I, II, III, and IV
24VDC switched and constant accessory power, up to 800mA combined

Specifications

Product Literature

Instructional Manuals

Commercial Vehicular Swing Gate Operator Model RCSW36V – Installation Instructions (opens in a new window)

Warranties

Commercial Vehicular Swing Gate Operator Model RCSW36V – Limited Warranty (pdf) (opens in a new window)

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Get Started Today

Request A Quote

garage door installation in selma ca, industrial swing door expert, commercial swing door repair industry ca, commercial swing gate openers, commercial swing door repair fresno, vehicular swing gate

Benefits of the Commercial Vehicular Swing Gate Operator

The Commercial Vehicular Swing Gate Operator offers numerous advantages for commercial properties, primarily enhancing security and accessibility. Its robust design ensures reliable operation, making it an ideal choice for businesses that require controlled access to their premises.

In addition to improved security, this gate operator provides convenience with features like adjustable speed and a dual line backlit LCD display, allowing users to customize the operation according to their needs. The battery backup ensures functionality during power outages, and the on-board solar charge controller promotes energy efficiency.

Installation and Maintenance Guidelines

Proper installation and maintenance of the Commercial Vehicular Swing Gate Operator are crucial for optimal performance and longevity. It is recommended to follow the manufacturer's installation instructions carefully, ensuring all components are securely fitted and aligned.

Regular maintenance checks, including battery inspections and lubrication of moving parts, can prevent potential issues and extend the lifespan of the gate operator. Following the guidelines provided in the instructional manuals will help ensure that the system operates smoothly and efficiently.

Comparative Analysis of Gate Operators

When choosing a gate operator, it's essential to compare different models based on features, specifications, and suitability for specific applications. The Commercial Vehicular Swing Gate Operator stands out due to its high weight capacity and versatility, accommodating gates up to 18 feet wide and 1500 pounds.

Other models may offer similar functionalities, but the RCSW36V's advanced features, such as the ability to integrate with OHD Anywhere® technology and its robust safety inputs, provide a competitive edge. Evaluating these aspects can help potential buyers make informed decisions that align with their security needs.

Customer Support and Warranty Information

Overhead Door Company of Fresno™ prides itself on providing exceptional customer support for its products, including the Commercial Vehicular Swing Gate Operator. Customers can reach out for assistance with installation, troubleshooting, or general inquiries to ensure they get the most out of their purchase.

The product comes with a comprehensive limited warranty, covering defects in materials and workmanship, which gives customers peace of mind. For further details, customers are encouraged to refer to the warranty documentation or contact customer service for clarification on coverage and claims.
