Foam Dock Shelter

TM70R

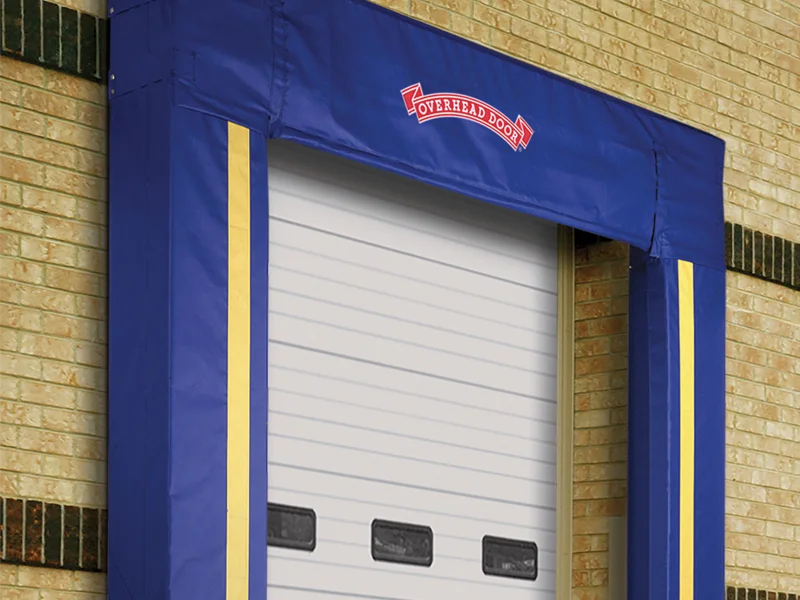

Impactable L-shaped columns hug the trailer to help seal out the weather. Along with the adjustable curtains, this shelter accommodates a wide variety of trailers with different widths and heights. It also provides access to the full width and height of the trailer.

Overhead Door™ Tech Support: 1-800-929-4692

Overview
Documents

Adjustable Curtain Heights

Available with up to a 52” drop
Full width steel tube that prevents curtain sagging
With a rope and pulley assembly, the curtain adjusts to different trailer heights to help aid thermal efficiency. The curtain can be ordered with overlapping low temperature PVC strips for cold applications

High Quality Construction

The fabric is double stitched with high strength polyester thread that has been UV treated for long term durability
The columns have premium grade foam with full compression and recovery properties in temperatures as low as -40°F
The fire resistant foam is continuously bonded to the backing with a non-flammable adhesive with elastic properties for long life
Plated vent openings drain moisture and promote air circulation for compression in the vertical columns

Fabric Advantages

Made of fire resistant fabric and available in multiple weights including a premium 40 oz fabric that has 6 times more abrasion resistance
All fabrics are treated with UV protection to prevent fading

Additional Trailer Impact and Abrasion Protection

Optional column wear pleats provide additional tearing and abrasion protection
Heavy duty 66 oz. wear pleats on the top and bottom corners also available

Foam Dock Shelter Line Drawing

DIMENSIONS	STANDARD	OPTIONAL
Column Height 10’9″	✓
Column Height 10’10” to 12′		✓
Column Width Back 8″ and Front 20″	✓
Column Width Front up to 30″		✓
Shelter Width 11’4″	✓
CURTAIN
Full Width Steel Tube	✓
30″ Adjustable Curtain	✓
Add drop up to 52″		✓
18″ Fixed Curtain		✓
Add drop up to 52″		✓
Split Curtain – Adjustable 30″ to 48″		✓
Split Curtain – Fixed 18″ to 48″		✓
Split Curtain – Velcro (adjustable or fixed)		✓
30″ PVC Curtain Strips		✓
PROJECTION
16″ Projection	✓
Projection (17″ – 24″)		✓
Projection Box 4″/6″/8″/10″/12″		✓
Taper Projection (16″ – 24″ top or bottom)		✓
FABRIC WEIGHT & COLOR
22 oz (Black, Blue, Gray, Green, Brown)		✓
40 oz Regular (Black, Blue, Gray, Green, Red, Brown)		✓
40 oz Premium (Black)		✓
ADDITIONAL ABRASION PROTECTION
Double layer of fabric on impact area of columns (same weight/colors as above)		✓
Scuff Guards (40 oz Regular, Black)		✓
Wear Pleats 4″/8″/16″ Exposure (same weight/color available as above)		✓
Heavy Duty 66 oz Top and Bottom Corner Pleats 4″ exposure (Black, Orange, Blue)		✓
FRAME
Treated Lumber	✓
Galvanized Steel		✓
DRAFT CONTROL
Two bottom draft flaps	✓
GUIDE STRIPES
24″ High	✓
Full Height		✓
MOUNTING
Galvanized Mounting Hardware	✓

BIM

Foam Shelter Model TM70R BIM Model (opens in a new window)

Shop Drawing

Specifications

Product Literature

Warranties

Dock Seals and Shelters Limited Warranty (opens in a new window)
