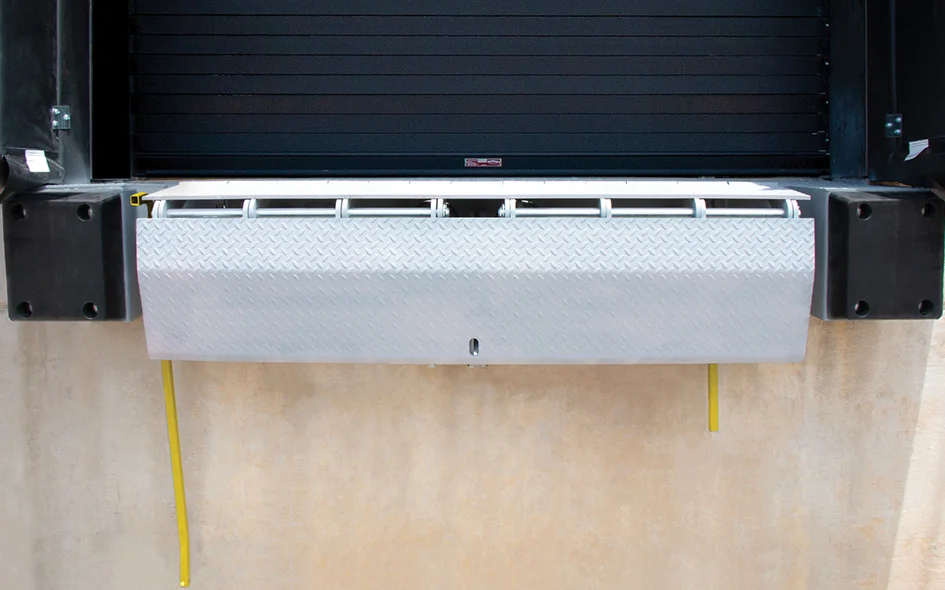

Edge of dock leveler featuring heavy-duty, powder-coated steel construction, designed for efficient loading dock operations, with visible mounting options and smooth transition features.

Edge of Dock Leveler - Mounting Options

The Edge of Dock Leveler offers seamless functionality, engineered to optimize your dock’s performance. Paired with the right mounting option, it ensures smooth transitions, reinforced stability, and long-term reliability—no matter the working environment. From reducing downtime to improving safety, our mounting solutions elevate your operation’s efficiency.

Whether you need smooth building-to-truck transitions, stable vertical mounting, or easy concrete integration, we have a solution for you.

Overview
Documents

Specifications

Mounting Options – Approach Plates, Formed Angles, Wall Plates, Channel Embeds
Material – Heavy-duty steel with powder coat finish
Finish – Textured powder coat for enhanced traction and corrosion protection
Environmental Compliance – U.S. EPA recommended eco-friendly coating process
Color Options – Matches Edge of Dock Levelers
Installation – Properly holed for anchoring, easy and fast setup
Load Capacity – Rated for heavy-duty, high-traffic applications in demanding environments

Approach Plates

Smooth Transitions – Ideal for creating a continuous path between trailers and the building, enhancing safety and efficiency.

Protect workers and materials by reducing impact during loading/unloading.

edge of dock mounting approach plate with kink

APPROACH PLATE WITH KINK	PART #
12″ x 120″	851068.12120
18″ x 120″	851068.18120
24″ x 120″	851068.24120
12″ x 106″	851068.12106
18″ x 106″	851068.18106
24″ x 106″	851068.24106
12″ x 100″	851068.12100
18″ x 100″	851068.18100
24″ x 100″	851068.24100

edge of dock mounting approach plate with bevel

APPROACH PLATE WITH BEVEL	PART #
12″ x 120″	851063.12120
18″ x 120″	851063.18120
24″ x 120″	851063.24120
12″ x 106″	851063.12106
18″ x 106″	851063.18106
24″ x 106″	851063.24106
12″ x 100″	851063.12100
18″ x 100″	851063.18100
24″ x 100″	851063.24100

Wall Plates

Secure Vertical Mounting – Best for installations where vertical mounting is needed for maximum steadiness.

Ensure superior alignment and long-lasting support.

WALL PLATE	PART #
13″ x 100″	851064.13100
13″ x 106″	851064.13106
13″ x 120″	851064.13120
16″ x 100″	851064.16100
16″ x 106″	851064.16106
16″ x 120″	851064.16120

Formed Angles

Enhanced Stability – Reinforced structural integrity perfect for areas with high traffic and heavy load demands.

Extend leveler performance in demanding environments and harsh conditions.

FORMED ANGLE WITH KINK	PART #
12″ x 13″ x 120″	851067.1213
16″ x 16″ x 120″	851067.1616
20″ x 20″ x 120″	851067.2020
24″ x 24″ x 120″	851067.2424

FORMED ANGLE WITH BEVEL	PART #
12″ x 13″ x 120″	851062.1213
16″ x 16″ x 120″	851062.1616
20″ x 20″ x 120″	851062.2020
24″ x 24″ x 120″	851062.2424

Channel Embeds

Seamless Concrete Integration – Ideal for new builds or dock retrofits for a durable foundation.

Integrate directly into concrete surfaces for a stable, secure dock system.

CHANNEL EMBED	PART #
8″ x 100″	851061.08100
8″ x 106″	851061.08106
8″ x 120″	851061.08120
10″ x 100″	851061.10100
10″ x 106″	851061.10106
10″ x 120″	851061.10120

Product Literature

Edge of Dock Mounting Options (opens in a new window)

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Get Started Today

Request A Quote

dock leveler replacement fresno, edge of dock fresno, edge of dock oxnard, dock leveler installation fresno, mechanical dock leveler parts fresno, dock equipment installer fresno, dock leveler pit construction fresno, dock levelers fresno, dock leveler and door repair, dock levelers miami, dock leveler repair oxnard, dock equipment maintenance fresno, dock edge leveler fresno, dock equipment parts oxnard, dock equipment repair oxnard, dock leveling hibernia, dock leveling ortega, dock leveling san mateo, hydraulic dock leveler maintenance oxnard, contractor edge of dock leveler

Benefits of Edge of Dock Levelers

Edge of Dock Levelers provide numerous advantages in loading dock operations, enhancing both safety and efficiency. These levelers allow for smooth transitions between the dock and trailers, reducing the risk of accidents and product damage during loading and unloading processes.

In addition to improving safety, Edge of Dock Levelers are designed to accommodate various trailer heights, ensuring that the loading process is seamless. Their heavy-duty construction supports high-traffic applications, making them an ideal choice for businesses that require reliable and durable dock solutions.

Installation Guidelines for Edge of Dock Levelers

Proper installation of Edge of Dock Levelers is crucial for their optimal performance. It is essential to follow the manufacturer's guidelines, ensuring that the levelers are securely anchored and correctly positioned to facilitate smooth operation.

Installation should be performed by trained professionals who understand the specific requirements of the equipment. This includes assessing the dock environment, choosing the right mounting options, and ensuring compliance with safety regulations to maximize the leveler's functionality and lifespan.

Maintenance Tips for Dock Levelers

Regular maintenance of Edge of Dock Levelers is vital to ensure their longevity and efficiency. Routine inspections should be conducted to check for wear and tear, as well as to ensure that all mechanical components are functioning correctly.

Keeping the levelers clean and free from debris is essential, as accumulated dirt can affect their performance. Additionally, lubricating moving parts and addressing any minor repairs promptly can prevent larger issues down the line, ultimately saving on costly repairs and downtime.

Comparing Edge of Dock Levelers with Other Dock Solutions

When considering dock solutions, it's important to compare Edge of Dock Levelers with alternatives such as pit levelers and portable ramps. Each option has its unique advantages and is suited for different operational needs.

Edge of Dock Levelers are particularly beneficial for facilities with limited space, as they do not require extensive modifications to the existing dock structure. In contrast, pit levelers may offer greater flexibility for varying trailer heights but involve more significant installation work. Understanding these differences can help businesses make informed decisions based on their specific requirements.
