Sectional steel door model 424 in industrial brown, featuring ribbed steel exterior, set in a brick archway against a stone wall.

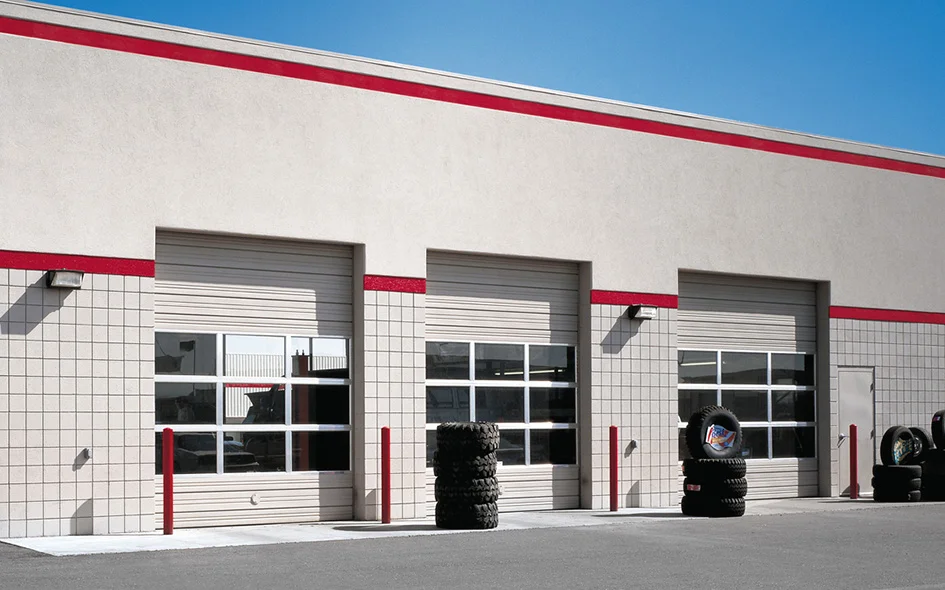

Sectional steel doors with windows on a commercial building exterior, showcasing Model 424 features, designed for heavy-duty use in industrial applications.

Sectional Steel Door Model 424

Model 424

Section Steel Door model 424 are designed for heavy-duty use in a variety of commercial and industrial applications. This door features a 2″ (51 mm) panel thickness, 16-gauge steel intermediate and end stiles, ribbed steel exterior and a white paint finish. The Model 424 is available in sizes up to 30´2″ (9195 mm) in width and 24´1″ (7341 mm) in height, and is also available in Industrial Brown. Numerous options including weather stripping, reinforced struts, movable center posts and motor operation allow these heavy-duty doors to meet nearly any project requirements.

Overview
Documents

Construction

Product Specifications
Standard Max Width	30’2″ (9195 mm)
Standard Max Height	24’1″ (7341 mm)
Nominal thickness	2″ (51 mm)
Exterior steel	24-gauge galvanized steel
Exterior surface	Ribbed
End stiles	16-gauge steel
Center stiles	16-gauge steel
Standard mounting	Angle mount
Standard track	2″ (51 mm)
Standard springs	10,000 cycle
Weather Stripping	Flexible PVC bottom with retainer
Weather Stripping	Flexible PVC bottom with retainer
Operation	Manual pull rope and electric operator
Finish	White or Industrial Brown baked-on polyester
Lock	Interior mounted slide lock
Wind Load	FBC approved wind load options available

Warranty

1-year limited

BIM

Sectional Steel Doors Model 424 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Key Features of the Model 424

The Sectional Steel Door Model 424 is designed with a variety of features that enhance its functionality and durability. Its robust construction, utilizing 24-gauge galvanized steel, ensures long-lasting performance suitable for commercial applications.

Additional features include a nominal thickness of 2 inches, flexible PVC bottom weather stripping for improved insulation, and options for wind load resistance, making it an ideal choice for varying environmental conditions.

Installation Options

The Model 424 offers versatile installation options to accommodate different commercial settings. It can be mounted using an angle mount system, which provides flexibility during installation and ensures a secure fit.

Moreover, the standard track design allows for easy operation, whether using a manual pull rope or an electric operator, catering to the needs of diverse users and enhancing convenience.

Customization Choices

Customers can choose from various customization options for the Model 424 to meet specific aesthetic and functional requirements. The door is available in two standard finishes: white and industrial brown, allowing businesses to select a style that complements their building's exterior.

Furthermore, additional features such as the interior mounted slide lock enhance security, while the ability to request specific sizes ensures that the door fits perfectly in any designated space.

Maintenance and Care

To ensure the longevity of the Model 424, regular maintenance is essential. Routine checks on the door's operation, lubrication of moving parts, and inspection of weather stripping can prevent potential issues and extend the lifespan of the door.

Additionally, following the manufacturer's guidelines for care and maintenance will help maintain the door's aesthetic appeal and functionality, ensuring it remains a reliable component of your commercial property for years to come.
