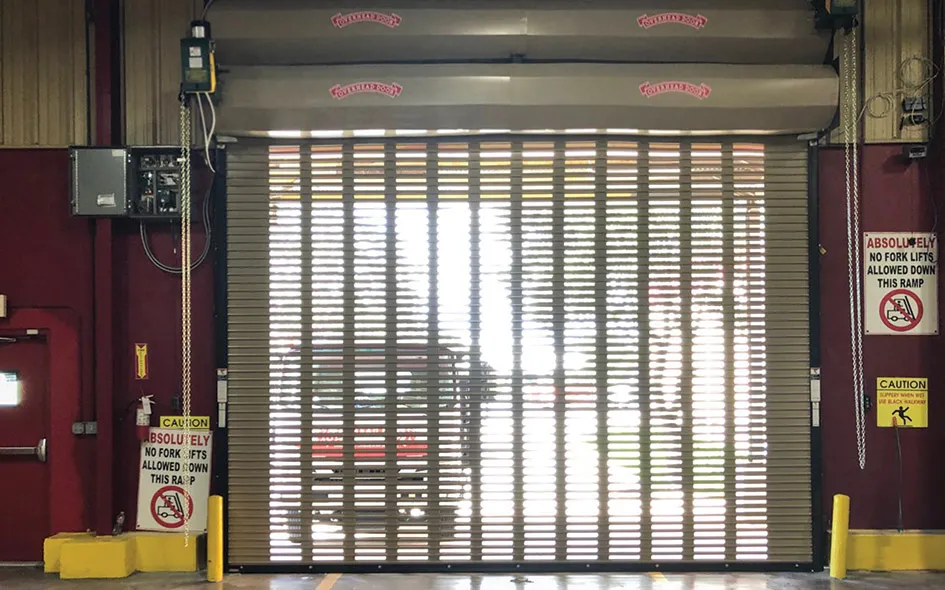

Rolling steel service door model 610 with a perforated curtain design, installed in a commercial setting, showcasing durability and customization options.

Rolling steel service door model 610 with a gray finish, featuring a slatted design, installed in a commercial setting, surrounded by a gated area and palm trees.

Rolling steel service door model 610 in commercial setting, featuring horizontal slats and integrated motor operation, with safety signage and cautionary notices visible.

Rolling steel service door model 610 with galvanized steel curtain, featuring Overhead Door branding, alongside a worker using a hose for cleaning.

Rolling steel service doors in a commercial setting, showcasing model 610 with a gray finish, overhead hoist system, and safety yellow floor markings.

Rolling Steel Service Doors - 610

Model 610

Rolling steel door model 610 is a perennial best-seller for good reason. The standard features exceed the norm for quality and a myriad of options allow for true customization. The Model 610 is built with a standard galvanized steel curtain, or an optional stainless steel or aluminum curtain. The standard curtain slat is the attractive C-187 curved profile, with additional slat options available in curved and flat. Finishes range from four standard colors to approximately 200 powder coat colors or matched to your specification. A host of other options — including motor operation, pass doors, exhaust ports, between-jambs mounting, cylinder locks and special usage packages — allow the 610 to be adapted to any environment.

Security and Storm Shelter Model 610F is a specialized option designed for storm shelters, schools and emergency operations centers. Model 610F provides tornado resistance while meeting the high wind load and impact requirements for FEMA 361.

Overview
Documents

Construction

Product Specifications
Standard Max Width	30’4″ (9246 mm)
Standard Max Height	28’4″ (8636 mm)
Curtain	16 ga. galvanized steel up to 30’4″ (9246 mm) width (F-265 only) 18 ga. galvanized steel up to 30’4″ (9246 mm) width* 20 ga. galvanized steel up to 25’4″ (7722 mm) width* 22 ga. galvanized steel up to 18’4″ (5588 mm) width* 24 ga. galvanized steel up to 15’4″ (4674 mm) width* * not all slat profiles
Finish	Gray, tan, white or brown
Hood	24 ga. galvanized steel
Wind load	20 psf
Standard mounting	Face of wall
Operation	Manual push-up up to 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm) Chain hoist over 84 sq. ft. (7804 sq.mm) or 12′ x 7′ (3658 mm x 2134 mm)
Standard springs	20,000 cycle
Weatherseals	Bottom bar astragal
Guides	Three structural steel angles PowderGuard® weathered finish with black powder coat
Bottom bar	Extruded aluminum with weatherseal up to 15’4″ (4674 mm) Back-to-back steel angles with weatherseal more than 15’4″ (>4674 mm)
Lock	Interior slide bolt on push-up Padlockable chain keeper on chain hoist

Warranty

24-month limited on door
3 year/20,000 cycles limited on door & operator system (when purchased together)

Fenestration

Curved slat with 3″ x 5/8″ fenestration

F265 slat with 10″ x 1″ fenestration

BIM

Rolling Steel Service Doors Model 610 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

Warranties

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Features of the Model 610

The Rolling Steel Service Door Model 610 is designed with a range of features that enhance its functionality and durability. Key features include robust construction, a variety of finishes, and customizable dimensions to suit different commercial applications.

For instance, the door is available in multiple gauge options, including 16, 18, and 20-gauge galvanized steel, allowing businesses to choose the right level of strength for their needs. Additionally, it offers a wind load rating of 20 psf, making it suitable for various environmental conditions.

Installation Options

The installation of the Rolling Steel Service Door Model 610 can be tailored to meet specific site requirements. It can be mounted in different configurations, such as between jambs or face-mounted, providing flexibility for various architectural designs.

Choosing the right installation method is crucial for optimal performance. Professional installation ensures that the door operates smoothly and meets safety standards, which is why Overhead Door Company of Fresno recommends hiring experienced technicians for the job.

Maintenance Tips

Regular maintenance is essential to extend the lifespan of the Rolling Steel Service Door Model 610. Routine checks and servicing can prevent common issues and ensure the door operates efficiently throughout its lifecycle.

Users should inspect the door for signs of wear, lubricate moving parts, and check the weather seals regularly. Implementing a maintenance schedule can significantly reduce the likelihood of costly repairs and downtime for businesses relying on these doors.

Comparative Advantages

The Rolling Steel Service Door Model 610 stands out in the market due to its combination of durability, security, and versatility. Compared to other models, it offers enhanced features that cater specifically to commercial needs.

For example, its robust construction and customizable options make it a preferred choice for businesses seeking reliable access solutions. Moreover, the warranty coverage provides additional peace of mind, ensuring customers receive a quality product that meets their operational demands.
