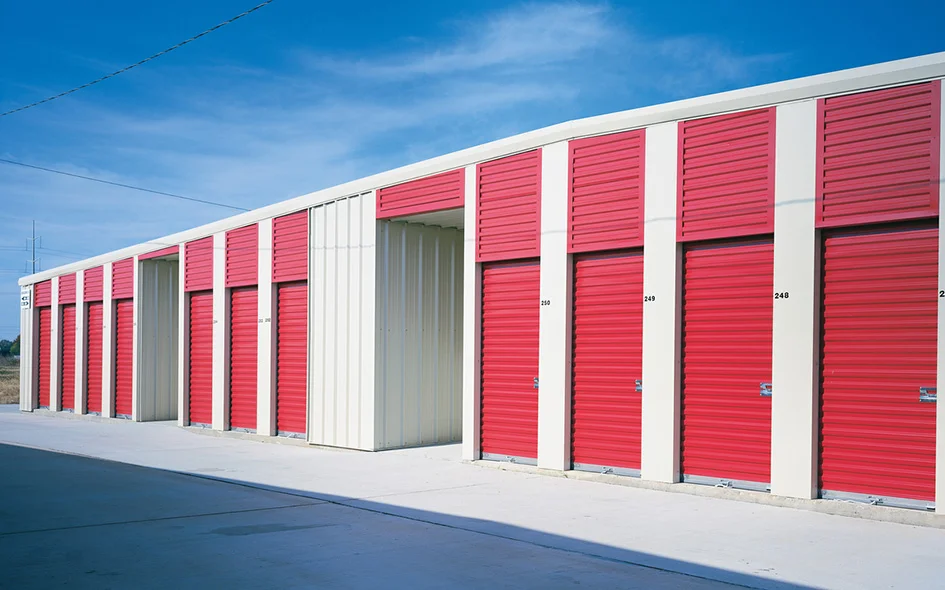

Rolling sheet door installation, model 770SS, featuring red and white color scheme, showcasing multiple storage units in a commercial setting.

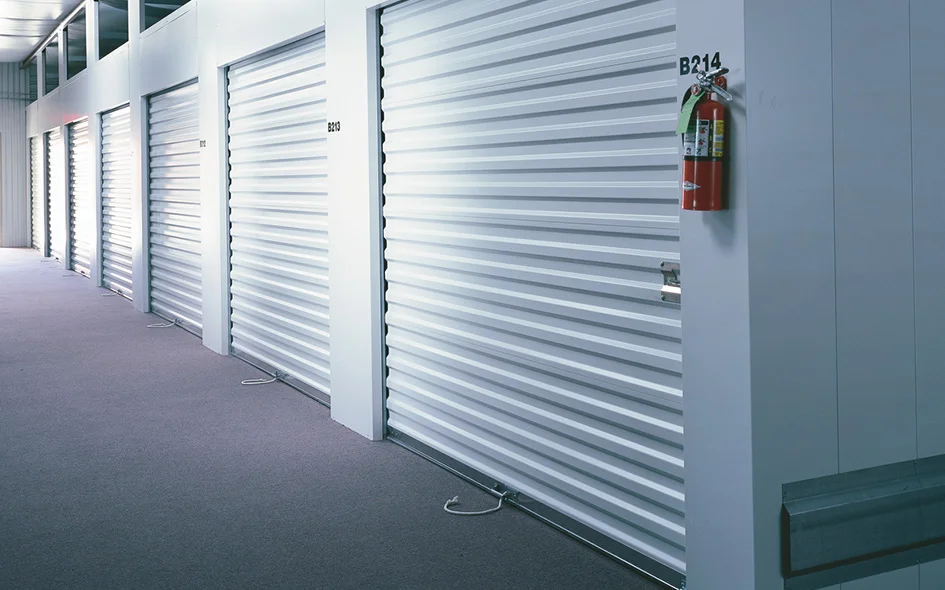

Rolling sheet doors in a storage facility, featuring multiple closed doors with a fire extinguisher mounted on the wall, illustrating the Model 770SS design and its application in commercial settings.

Rolling Sheet Door - 770SS

Model 770SS

ProStar™ Model 770SS

The Model 770SS rolling sheet door is a great option for facilities that require a quality door that installs quickly, operates dependably, and requires minimal maintenance. Like the other doors of our rolling sheet door line, this 26-gauge door features quick-connect components that simplify and speed installation while ensuring door sturdiness. Stepped counterbalance rings and a unique curtain profile ensure a tight curtain wrap resulting in a smooth operating door and minimal nesting. A host of other standard features from standard roller bearings and dual rub strips on both guide edges and both front edges of the curtain further promote smooth operation and longer life. Available in 12 standard colors, the Model 770SS represents a good choice and a good value.

Overview
Documents

Construction

Product Specifications
Standard Max Width	10′ (3048 mm)
Standard Max Height	10′ (3048 mm)
Curtain	26-gauge, roll-formed, galvanized steel sections interlocked and seamed to form full door height
Curtain material	High strength steel
Curtain rub strips	Flexible webbing on both front edges
Counterbalance Assembly	9″ (229 mm) steel “stepped” rings to minimize headroom and enhance door operation
Universal guides	18-gauge, roll-formed galvanized steel, pre-punched through-hole design for mounting to concrete, masonry, steel or wood jambs
Quick-connect headplate	11-gauge steel
Bottom bar	Extruded aluminum reinforced with steel, roll-formed angles
Quick-connect bottom bar stops	14-gauge galvanized steel
Bottom seal	Bulb-type, astragal seal
Guide rub strips	Polypropylene strips on both edges
Standard springs	3 3/8″ (86 mm) torsion springs
Operation	Manual push up center handle with side step plate, and center rope attached to bottom bar
Lock	Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*) (right or left-handed)
Exterior/interior finish	Paint finish in choice of 14 standard colors: white, glossy white, silhouette gray, buckskin, desert tan, garnet red, walnut brown, polar blue, royal blue, teal, dark teal, forest green, bronze and matte black.

_{*Cylinder locks and padlocks not provided}

Warranty

1 year

BIM

ProStar Rolling Steel Sheet Doors Model 770SS BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

Warranties

Rolling Sheet Doors Warranty (opens in a new window)

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Features of the Rolling Sheet Door - 770SS

The Rolling Sheet Door - 770SS is designed with a focus on durability and efficiency, making it suitable for various commercial applications. Its construction includes 26-gauge galvanized steel sections that are interlocked, providing a robust barrier against the elements.

In addition to its sturdy build, the door features a quick-connect headplate and a unique bottom bar design that enhances ease of installation and operation. The door also comes with multiple color options, allowing customization to fit the aesthetic of any facility.

Installation Process

Installing the Rolling Sheet Door - 770SS is straightforward, thanks to its pre-punched design that accommodates various mounting surfaces including concrete, masonry, and wood. This feature significantly reduces installation time and complexity, making it an ideal choice for contractors and facility managers.

Professional installation is recommended to ensure optimal performance and longevity. However, detailed installation guides and support documents are available to assist DIY enthusiasts who prefer to handle the setup themselves.

Maintenance Tips

To ensure the longevity of the Rolling Sheet Door - 770SS, regular maintenance is essential. This includes periodic inspections of the curtain, guides, and counterbalance assembly to identify any wear or damage that may affect functionality.

Additionally, lubricating moving parts and checking the bottom seal for wear can prevent operational issues. Following these maintenance tips will help keep the door operating smoothly and efficiently for years to come.

Customer Testimonials

Many customers have praised the Rolling Sheet Door - 770SS for its reliability and ease of use. Testimonials highlight its quick installation process and the minimal maintenance required, making it a favorite among business owners looking for efficient solutions.

Feedback also emphasizes the door's aesthetic appeal, with many appreciating the variety of color options that allow them to align the door's appearance with their brand identity. Such positive reviews underscore the door's value in commercial settings.
