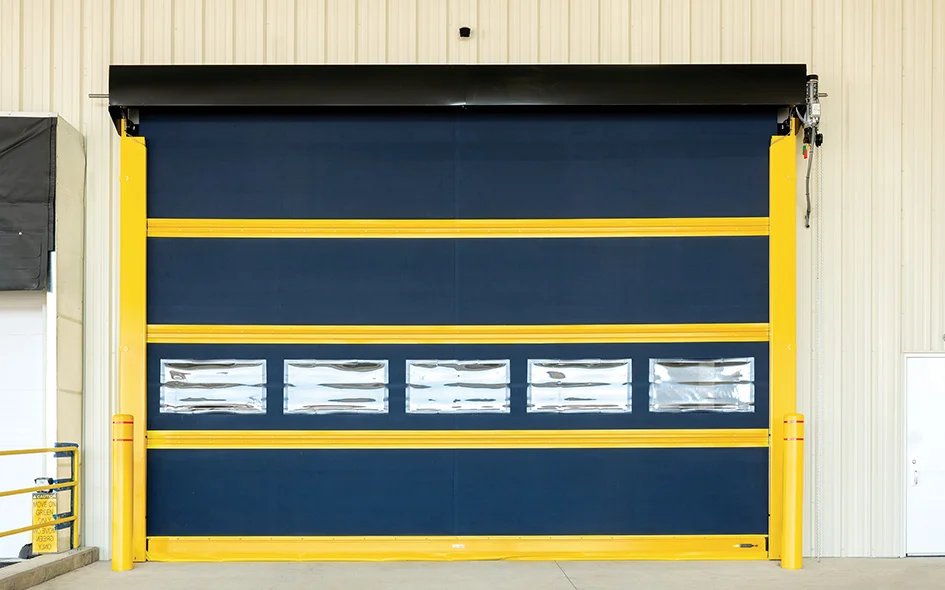

High-speed heavy-duty exterior fabric door with blue and yellow design, featuring transparent windows, suitable for commercial applications like manufacturing and parking garages.

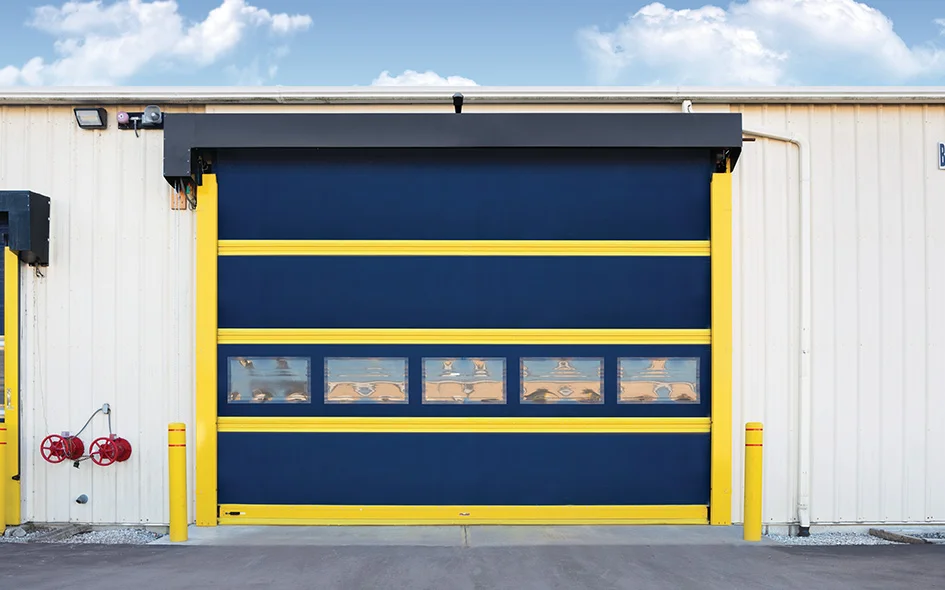

High-speed heavy-duty exterior fabric door with blue and yellow design, featuring windows, suitable for commercial applications like manufacturing and parking garages.

High-speed heavy-duty exterior fabric door model 994 in blue, featuring windows, suitable for commercial applications like manufacturing and parking garages.

High-speed heavy-duty exterior fabric door with yellow stripes and windows, designed for commercial use in manufacturing and parking garage applications.

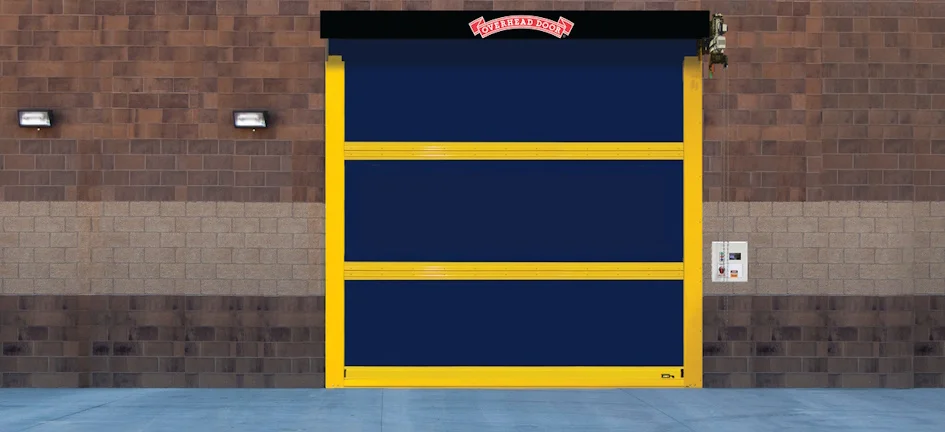

High-speed heavy-duty exterior fabric door model 994 with yellow stripes, designed for commercial applications, set against a brick wall background.

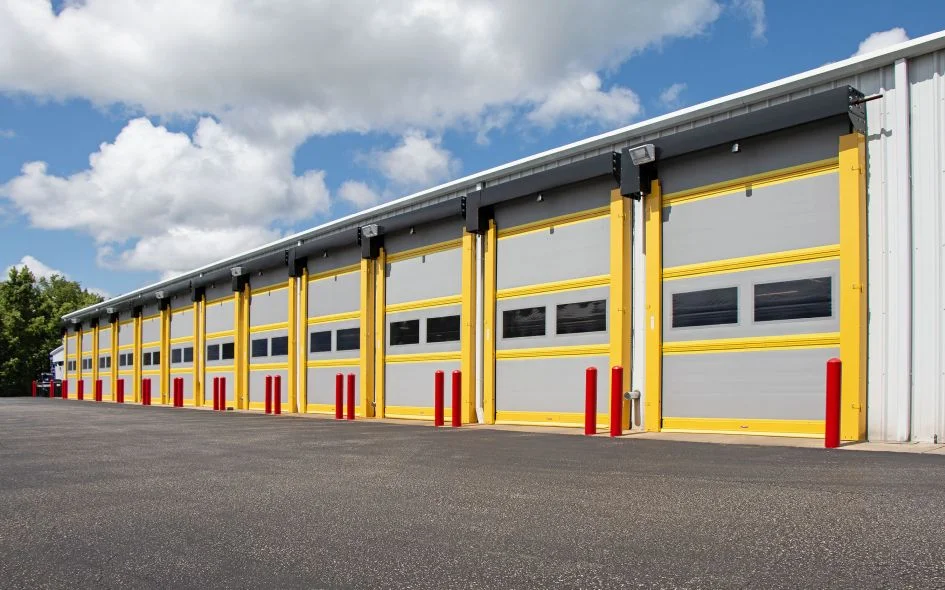

High-speed heavy-duty exterior fabric doors in a commercial setting, featuring multiple yellow and grey doors with windows, designed for large openings in manufacturing and parking garage applications.

High-speed heavy-duty exterior fabric door model 994 with grey panels and yellow accents, designed for commercial applications like manufacturing and parking garages.

High-speed heavy-duty exterior fabric door model 994 by Overhead Door Company of Fresno, featuring a blue fabric design with yellow accents, installed in a commercial setting.

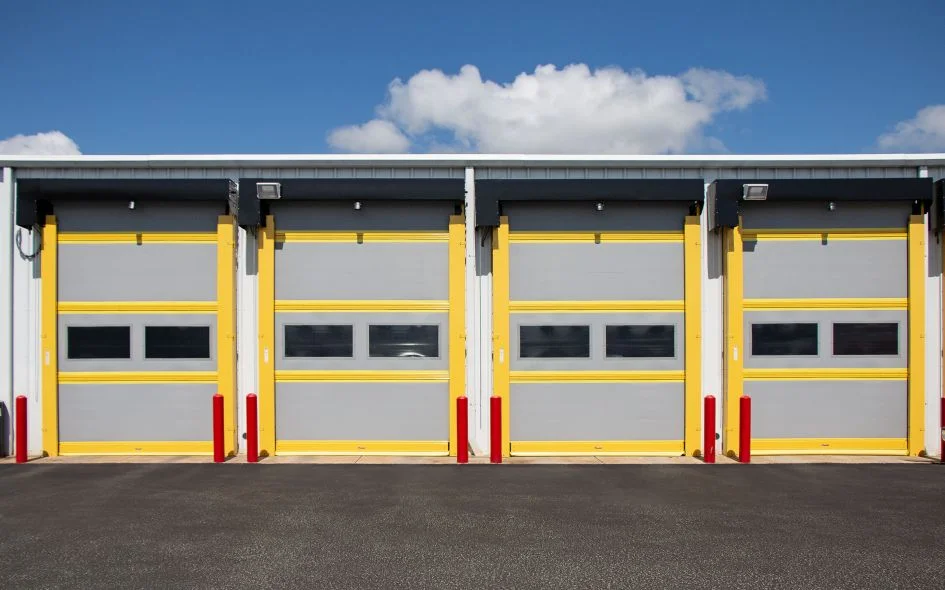

High-speed heavy-duty exterior fabric door with gray fabric and yellow horizontal stripes, designed for commercial applications such as parking garages and manufacturing facilities.

High Speed Heavy Duty Exterior Fabric Door - 994

Model 994

RapidFlex^® Model 994 is a strutted, heavy-duty exterior high speed fabric door that is perfect for large openings and is best suited for manufacturing, mining, auto/transit, and parking garage applications. It features an independently tested wind load of up to 22.0 psf. The RapidFlex^® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device.

Our RapidFlex^® Model 994 high speed heavy-duty exterior door is a perfect door solution for parking garages, mining, auto/transit and manufacturing facilities.

Overview
Documents

Construction

Product Specifications
Standard Max Width	24′
Standard Max Height	20′
Speed	Up to 55″ per second
Break-away Self-reset	Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut	4” articulating roller wind strut
Curtain Material	3 layers of PVC coated polyester; 2 layers of polyester weave.
Vision Option	20” high windows spaced evenly across width of door
Operation	Direct drive motor and gearbox system with a door stop device
Control Panel	Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
Obstruction Detection	2 sets of infrared sensor mounted proximity to the door path
Reversing Safety Edge	Wireless monitored reversing edge
Electrical Availability	208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (†requires stand-alone mounted transformer)
Wind Load*	Up to 22.0 psf

^{* Pressure/wind resistance value is the ultimate pressure tested at door width of 20′.}

Warranty

5-year Limited

BIM

RapidFlex High Speed HD Exterior Fabric Door – Model 994 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Features of the Model 994

The Model 994 high-speed heavy-duty exterior fabric door is equipped with several advanced features that enhance its functionality and performance. These include a direct drive motor and gearbox system that ensures smooth operation, as well as a variable frequency drive control panel that allows for customizable speed settings.

Additionally, the door includes safety features such as an obstruction detection system with two sets of infrared sensors positioned near the door path, and a reversing safety edge that ensures the door reverses if an obstacle is detected. This combination of features makes the Model 994 a reliable choice for high-traffic commercial environments.

Applications of High Speed Doors

High-speed doors like the Model 994 are ideal for a variety of commercial applications, particularly in sectors that require rapid access and high durability. Industries such as manufacturing, mining, and auto transit benefit from the quick open and close speeds, which help to maintain workflow efficiency and reduce energy loss.

Moreover, these doors are well-suited for parking garages where quick vehicle access is necessary, as well as in environments where temperature control is crucial. Their robust construction allows them to withstand harsh conditions, making them a versatile option for many businesses.

Installation and Maintenance

Proper installation of the Model 994 is critical to ensure optimal performance and longevity. It is recommended that installation be carried out by trained professionals who are familiar with the specific requirements of high-speed doors. This includes ensuring the correct alignment and integration with existing building systems.

Routine maintenance is also essential to keep the door functioning smoothly. This includes regular inspections of the motor, sensors, and safety features to prevent potential issues. Additionally, the onboard self-diagnostic and service reminder systems aid in maintaining the door’s operational efficiency.

Comparative Advantages Over Traditional Doors

The Model 994 offers several advantages over traditional doors, particularly in terms of speed and energy efficiency. Unlike standard overhead doors that may take several seconds to open or close, the Model 994 operates at high speeds, significantly reducing wait times for vehicles and personnel.

Furthermore, the design of the Model 994 helps to minimize air exchange between different environments, which can lead to energy savings in climate-controlled spaces. This efficiency not only contributes to lower operational costs but also enhances the overall functionality of the facility.
