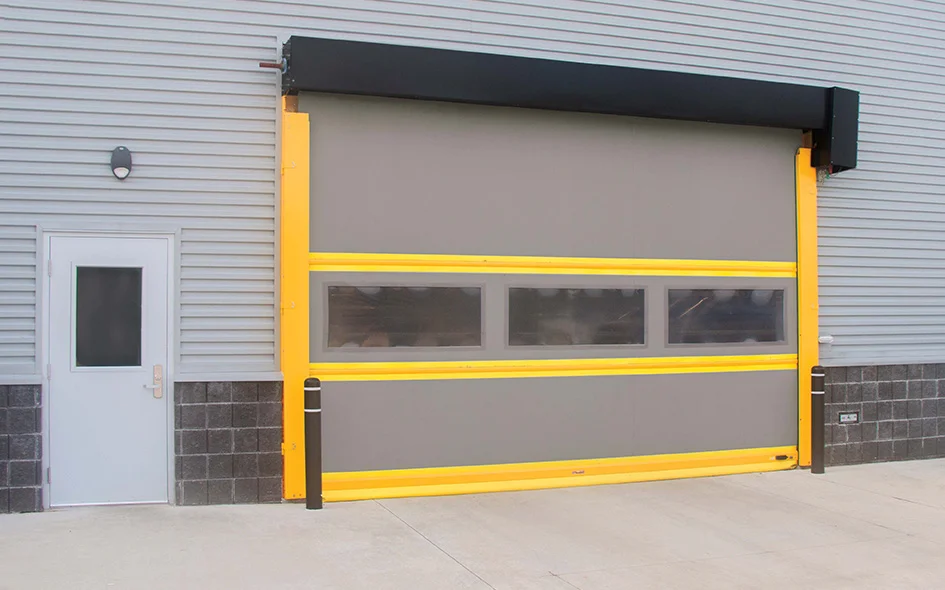

High-speed exterior fabric door model 993 with yellow frame and windows, designed for commercial use in parking garages and warehouses.

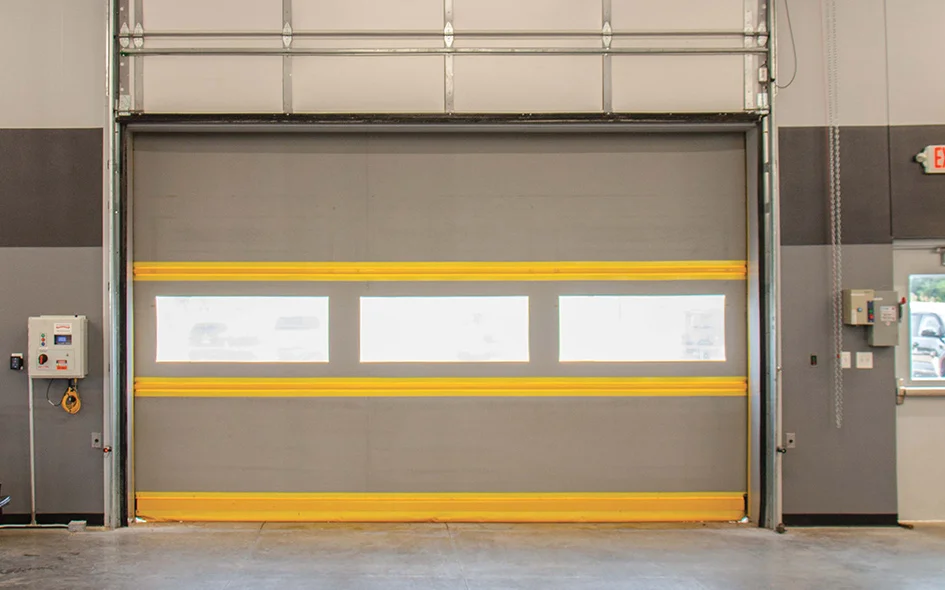

High-speed exterior fabric door model 993 with yellow safety stripes and windows, designed for commercial use in warehouses and distribution facilities.

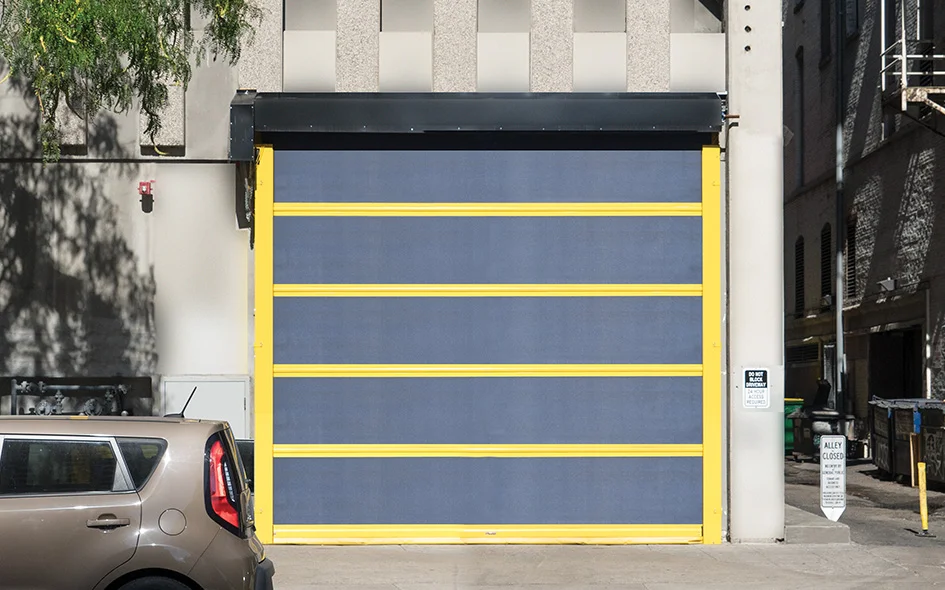

High-speed exterior fabric door model 993 with yellow stripes, designed for commercial use, installed in an urban setting, emphasizing durability and safety features.

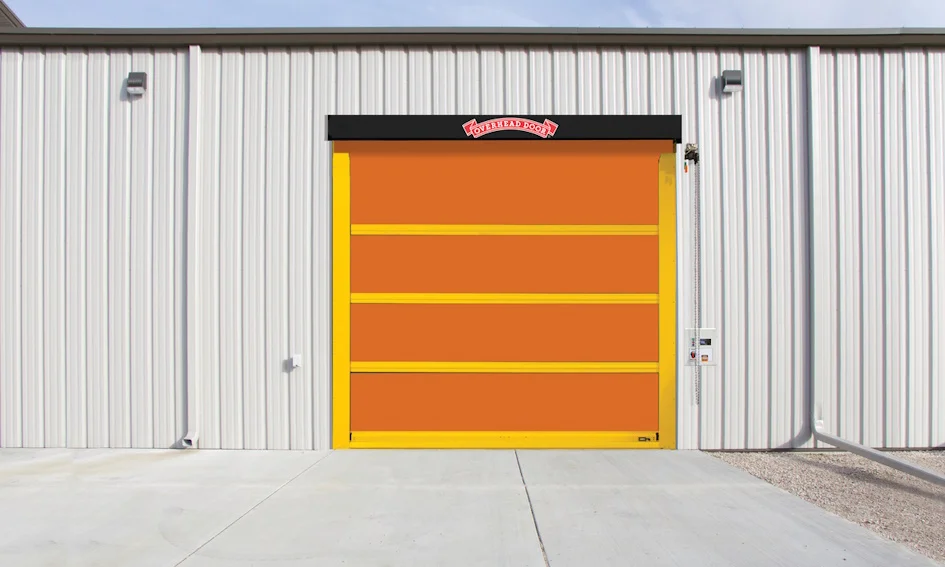

High-speed exterior fabric door model 993 with orange fabric and yellow frame, designed for commercial use in warehouses and manufacturing facilities.

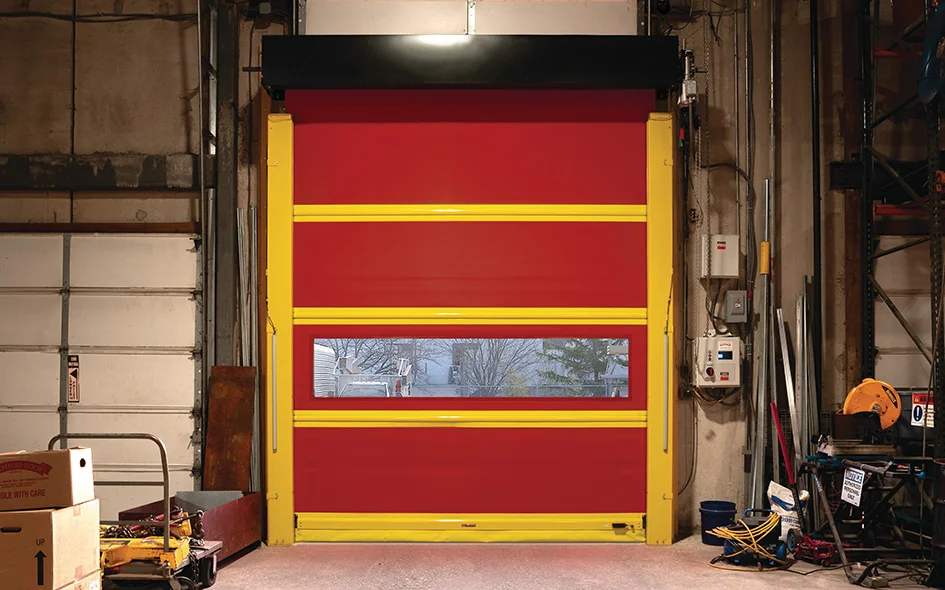

High-speed exterior fabric door model 993 in red and yellow, featuring a window and installed in a commercial setting, showcasing reliability and safety features for industrial use.

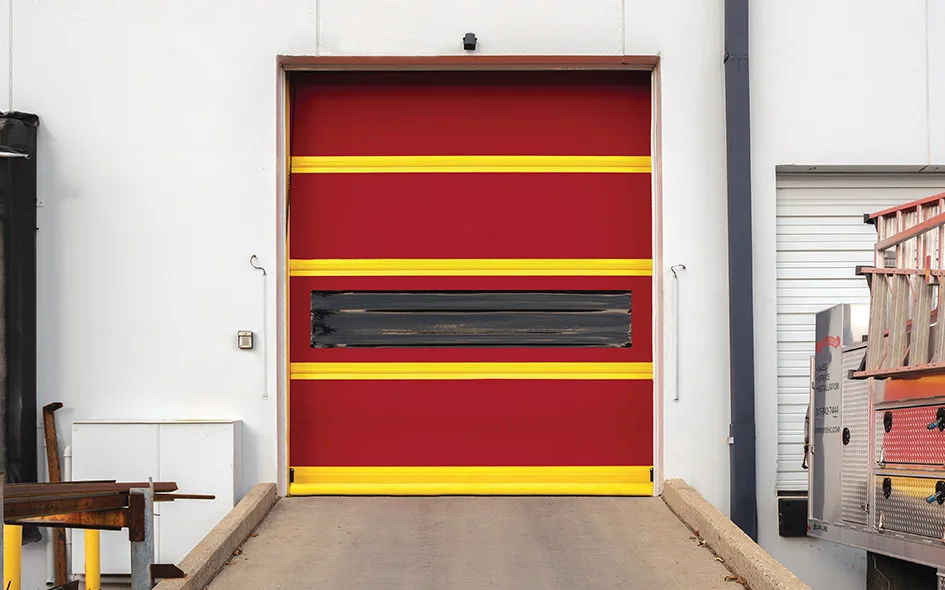

High-speed exterior fabric door model 993 in red with yellow stripes, designed for commercial use in warehouses and distribution facilities.

High Speed Exterior Fabric Door - 993

Model 993

RapidFlex^® Model 993 is a strutted, exterior heavy-duty high speed fabric door with independently tested wind load of up to 19.5 psf*. Its industry-leading standard safety features include reversing edge, two sets of infrared obstruction detection sensors and door stop device.

Perfect for parking garages, manufacturing, warehouse and distribution facilities.

Overview
Documents

Construction

Product Specifications
Standard Max Width	20′
Standard Max Height	20′
Speed	Up to 65″ per second
Break-away Self-reset	Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut	Metal struts with roller windlocks
Curtain Material	3 layers of PVC coated polyester with 2 layers of polyester weave
Header Braces	Multiple braces across entire width strengthen and combat sagging
Hood	Protection from debris and moisture
Operation	Direct drive motor and gearbox system with a door stop device
Control Panel	Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
Obstruction Safety Detection	Infrared sensors mounted in-plane to the door curtain at 18″ and 50″ – 54″ from floor
Reversing Safety Edge	Wireless reversing edge
Available Supply Voltages**	208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH† (†requires stand-alone mounted transformer)
Wind Load*	Up to 19.5 psf

_{** Single phase available up to 10’x10′ doors.}
_{* Pressure/wind resistance value is the ultimate pressure tested at door width of 16′.}

Warranty

5-year Limited

BIM

RapidFlex High Speed Exterior Fabric Door – Model 993 BIM (opens in a new window)

Shop Drawing

Specifications

Product Literature

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Features of the High Speed Exterior Fabric Door - 993

The High Speed Exterior Fabric Door - 993 offers a range of features designed to enhance efficiency and durability in commercial applications. With a maximum speed of up to 65 inches per second, this door ensures quick access while maintaining security and safety standards.

Notable features include a break-away design that minimizes damage during impact, a robust direct drive motor system, and advanced safety mechanisms such as infrared sensors for obstruction detection. These attributes make the Model 993 an ideal choice for busy environments where rapid entry and exit are essential.

Applications of the High Speed Exterior Fabric Door - 993

The High Speed Exterior Fabric Door - 993 is versatile and suitable for various commercial applications, including warehouses, distribution centers, and manufacturing facilities. Its design caters to high-traffic areas, providing efficient access while protecting against environmental factors.

Common uses include loading docks, food processing plants, and automotive facilities, where quick transitions are necessary. The door's ability to withstand wind loads of up to 19.5 psf further enhances its suitability for outdoor installations, ensuring reliability in diverse operational settings.

Installation and Maintenance Guidelines

Proper installation and maintenance of the High Speed Exterior Fabric Door - 993 are crucial for optimal performance and longevity. It is recommended to engage professional installers familiar with the door's specifications and operational requirements to ensure a seamless setup.

Regular maintenance checks should include inspecting the motor and gearbox system, testing safety sensors, and ensuring the curtain material remains in good condition. Adhering to these guidelines will help prevent operational issues and extend the lifespan of the door.

Customer Support and Service Options

Overhead Door Company of Fresno™ is committed to providing exceptional customer support for the High Speed Exterior Fabric Door - 993. Customers can easily request quotes or inquire about product details by contacting the dedicated support team via phone or through the website.

In addition to pre-sales support, the company offers post-installation services, including troubleshooting and maintenance assistance. This comprehensive support structure ensures that customers receive timely help, enhancing their overall experience with the product.
