Flexible Bottom High Speed Door – 990

Model 990

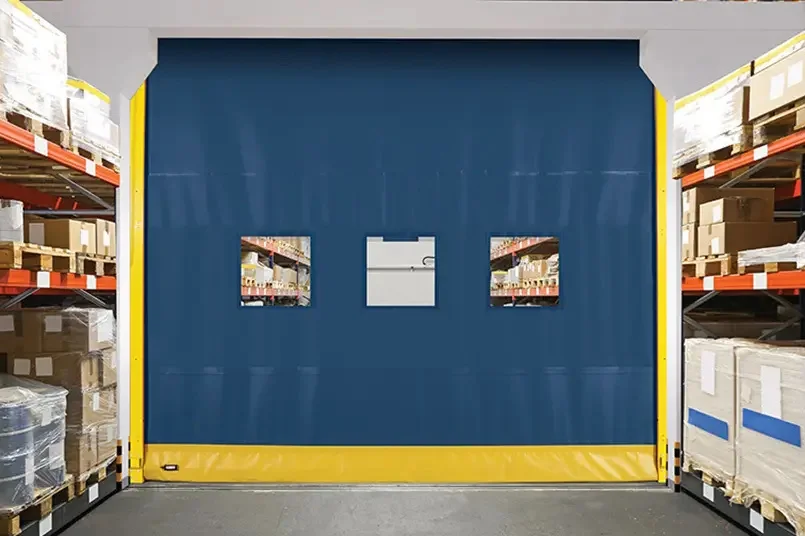

Our flexible bottom high speed interior fabric door, RapidFlex^® 990, is ideal for high-traffic manufacturing, pharmaceutical, warehouse and distribution facilities. Built for safety this door features a flexible bottom with wireless monitored reversing edge, built-in drop stop device and in-plane infrared sensors.

Overview
Documents

Construction

Product Specifications
Standard Max Width	12′
Standard Max Height	12′
Speed	Up to 70″ per second
Curtain Lock	Patent-pending curtain-lock design allows for quick and easy repair in the field
Break-Away Self-Reset	Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Load*	Up to 3.0 psf
Door Panel	2 thin layers of PVC coated polyester; 1 layer of polyester weave
Operation	Direct drive motor and gearbox system with a door stop device
Control Panel	Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
Obstruction Detection	Infrared sensors mounted in-plane to the door curtain at 6″ and 50″-54″ from floor
Reversing Safety Edge	Wireless reversing edge; Flexible bottom bar with detachable bottom seal
Electrical Availability**	120V AC 1PH; 208V AC 1PH^†; 220V AC 1PH; 208V AC 3PH^†; 230V AC 3PH; 460V AC 3PH; 575V AC 3PH^†

* Pressure/wind resistance value is the ultimate pressure tested at door width of 12′.
**Single phase available up to 10’ doors.
^†^{Requires stand-alone mounted transformer}

Warranty

5-year limited on drive motor and gearbox; 1-year limited on all other available components

BIM

RapidFlex® Model 990 High Speed Interior Fabric Door BIM Model (opens in a new window)

Shop Drawing

Specifications

Product Literature

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Features of the Model 990

The Flexible Bottom High Speed Door Model 990 is designed with advanced features that enhance its performance and usability in various environments. Its unique curtain lock design allows for quick repairs, ensuring minimal downtime during operation.

Additionally, the door operates at speeds of up to 70 inches per second, making it ideal for high-traffic areas. With infrared sensors for obstruction detection and a flexible bottom bar, the Model 990 prioritizes safety while maintaining operational efficiency.

Applications of the Flexible Bottom High Speed Door

The Model 990 is versatile and suitable for a range of applications, including industrial warehouses, food processing facilities, and commercial buildings. Its high-speed operation and robust construction make it perfect for environments that require quick access and temperature control.

For instance, in a food processing plant, the Model 990 can help maintain hygiene standards while allowing for rapid movement of goods. Its ability to withstand wind loads up to 3.0 psf also makes it suitable for exterior openings exposed to varying weather conditions.

Installation and Maintenance Guidelines

Proper installation and regular maintenance are crucial for the optimal performance of the Model 990. It is recommended that installation be carried out by trained professionals to ensure compliance with safety standards and manufacturer specifications.

Routine maintenance checks, including inspecting the drive motor and gearbox, can extend the lifespan of the door. Users are encouraged to follow the service reminders provided by the onboard diagnostics system to ensure timely upkeep.

Customer Support and Service Options

Overhead Door Company of Fresno™ is committed to providing exceptional customer support for the Model 990. Customers can easily reach out for inquiries, quotes, or service requests through the provided contact number.

Additionally, the company offers comprehensive service options, including installation, maintenance, and emergency repairs, ensuring that customers receive prompt and professional assistance whenever needed.
