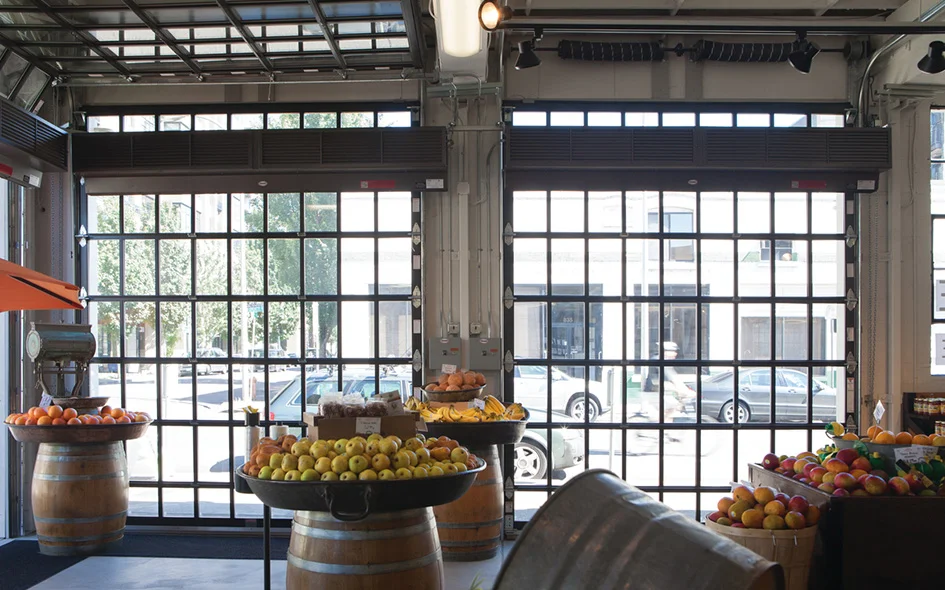

Aluminum Glass Door model 511 showcasing a sleek design with maximum visibility, framed by fruit displays in a commercial setting.

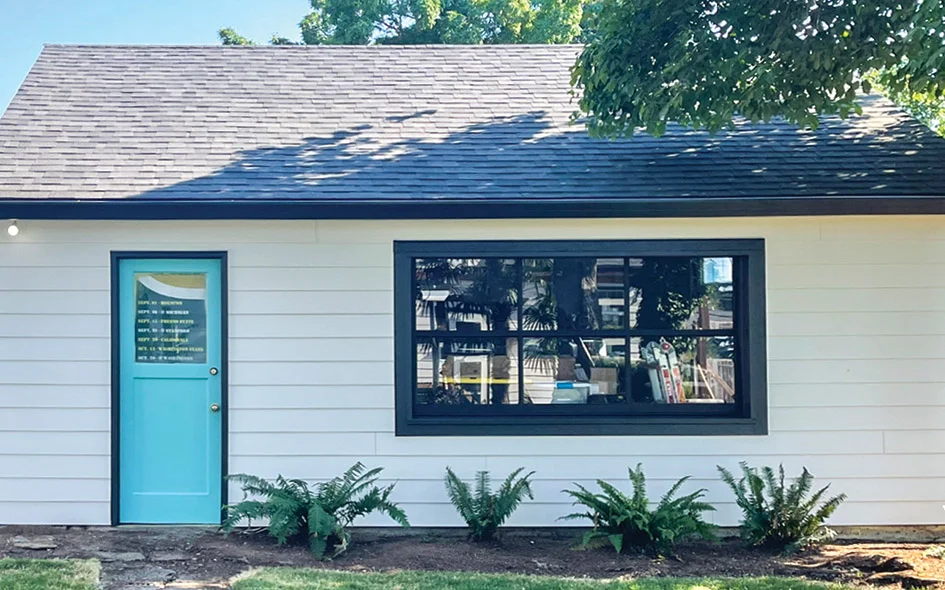

Aluminum Glass Door model 511 displayed in a modern building setting, featuring a sleek design with a narrow center stile, surrounded by greenery and a vibrant turquoise door.

Aluminum Glass Door model 511 featuring large glass panels and narrow stiles, installed in a commercial setting showcasing fruit displays.

Aluminum Glass Door - 511

Model 511

Aluminum Glass Door model 511 is designed in sizes up to 16’2″ (4928 mm) wide and 16’1″ high (4902 mm). Featuring a narrow center stile width of 21/32″ (17 mm), these doors are sleek, attractive and permit maximum visibility. An array of glazing choices, top and bottom rail widths, finishes and special options customizes the 511 to satisfy nearly any project requirement.

Overview
Documents

Construction

Product Specifications
Standard Max Width	16’2″ (4928 mm)
Standard Max Height	16’1″ (4902 mm)
Panel thickness	1 3/4″ (45 mm)
Material	6063-T6 aluminum
Standard finish	204R-1 clear anodized
Center stile width	21/32″ (17 mm)
End stile width	2 3/4″ (70 mm)
Top rail width	2 3/8″ (60 mm)or 3 3/4″ (95 mm)
Top intermediate rail width	3/4″ (19 mm)
Bottom intermediate rail width	5/8″ (16 mm)
Bottom rail width	2 3/8″ (60 mm) or 3 3/4″ (95 mm) or 4 1/2″ (114 mm)
Weatherseals	Bottom, flexible PVC
Standard springs	10,000 cycle
Track	2″ (51 mm)
Mounting	Angle
Operation	Manual pull rope
Hinges and fixtures	Galvanized steel
Lock	Galvanized, interior-mounted single unit

Warranty

1-year limited

BIM

Aluminum Glass Door Model 511 – BIM Model (opens in a new window)

Shop Drawing

Specifications

Product Literature

Warranties

Aluminum Glass Door Model 511 Warranty (opens in a new window)

2465 N Miami Ave, Fresno, CA 93727, United States

Business Hours

Monday-Friday: 7:00 AM – 4:30 PM
Saturday-Sunday: Closed

CA Contractors License #474830

Come Visit Us

“Overhead Door is a trademark and the Red Ribbon logo is a registered trademark of Overhead Door Corporation”.

Terms & Conditions | Privacy Policy | Cookie Policy

Web Design and Digital Marketing by Lead Nurture Close Marketing

Features of the Aluminum Glass Door - 511

The Aluminum Glass Door - 511 is engineered with a sleek design that enhances both aesthetics and functionality, making it an ideal choice for commercial environments. Its full-view glass panels provide excellent visibility while allowing natural light to flood the space, creating an inviting atmosphere.

This model boasts a robust construction with 6063-T6 aluminum, ensuring durability and resistance to corrosion. Its customizable size options, with a maximum width of 16’2″ and height of 16’1″, cater to various architectural needs, making it versatile for different applications.

Installation Process for Model 511

Installing the Aluminum Glass Door - 511 requires careful planning and execution to ensure optimal performance and longevity. Professional installation is recommended to guarantee that the door is mounted correctly and operates smoothly, which includes aligning the tracks and securing the door in place.

During installation, the use of appropriate tools and techniques is essential, particularly when handling the heavy aluminum panels. Additionally, the installation team should verify that all weather seals and locking mechanisms are properly fitted to enhance energy efficiency and security.

Maintenance Tips for Longevity

To maintain the Aluminum Glass Door - 511 in peak condition, regular maintenance is crucial. This includes routine inspections for any signs of wear, such as checking the weather seals and ensuring the track remains free of debris for smooth operation.

Cleaning the glass panels with a gentle, non-abrasive cleaner will help preserve clarity and appearance. Furthermore, lubricating hinges and other moving parts periodically can prevent rust and ensure that the door operates silently and efficiently.

Comparative Advantages Over Traditional Doors

The Aluminum Glass Door - 511 offers several advantages over traditional wooden or steel doors, particularly in terms of energy efficiency and design flexibility. Its aluminum frame is lightweight yet strong, reducing the overall load on structures while providing excellent insulation properties.

Additionally, the modern aesthetic of the glass door complements contemporary architecture, making it a preferred choice for businesses looking to enhance their exterior appeal. Unlike traditional doors, the Aluminum Glass Door - 511 requires less maintenance and is less prone to warping or damage from the elements.
